Extracting artifact and evoked response atoms from the sample dataset

This example illustrates how to learn rank-1 1 atoms on the multivariate sample dataset from mne. We display a selection of atoms, featuring heartbeat and eyeblink artifacts, three atoms of evoked responses, and a non-sinusoidal oscillation.

1

Dupré La Tour, T., Moreau, T., Jas, M., & Gramfort, A. (2018). Multivariate Convolutional Sparse Coding for Electromagnetic Brain Signals. Advances in Neural Information Processing Systems (NIPS).

# Authors: Thomas Moreau <thomas.moreau@inria.fr>
#          Mainak Jas <mainak.jas@telecom-paristech.fr>
#          Tom Dupre La Tour <tom.duprelatour@telecom-paristech.fr>
#          Alexandre Gramfort <alexandre.gramfort@telecom-paristech.fr>
#
# License: BSD (3-clause)

Let us first define the parameters of our model.

# sample frequency
sfreq = 150.

# Define the shape of the dictionary
n_atoms = 40
n_times_atom = int(round(sfreq * 1.0))  # 1000. ms

# Regularization parameter which control sparsity
reg = 0.1

# number of processors for parallel computing
n_jobs = 5

Next, we define the parameters for multivariate CSC

from alphacsc import GreedyCDL
cdl = GreedyCDL(
    # Shape of the dictionary
    n_atoms=n_atoms,
    n_times_atom=n_times_atom,
    # Request a rank1 dictionary with unit norm temporal and spatial maps
    rank1=True,
    uv_constraint='separate',
    # apply a temporal window reparametrization
    window=True,
    # at the end, refit the activations with fixed support and no reg to unbias
    unbiased_z_hat=True,
    # Initialize the dictionary with random chunk from the data
    D_init='chunk',
    # rescale the regularization parameter to be a percentage of lambda_max
    lmbd_max="scaled",
    reg=reg,
    # Number of iteration for the alternate minimization and cvg threshold
    n_iter=100,
    eps=1e-4,
    # solver for the z-step
    solver_z="lgcd",
    solver_z_kwargs={'tol': 1e-2,
                     'max_iter': 10000},
    # solver for the d-step
    solver_d='alternate_adaptive',
    solver_d_kwargs={'max_iter': 300},
    # sort atoms by explained variances
    sort_atoms=True,
    # Technical parameters
    verbose=1,
    random_state=0,
    n_jobs=n_jobs)

Here, we load the data from the sample datase. The data is not epoched yet, but we split it into 12 parts to make the most of multiple processors during the model fitting.

from alphacsc.datasets.somato import load_data
X_split, info = load_data(sfreq=sfreq, dataset='sample', n_splits=2 * n_jobs)

Fit the model and learn rank1 atoms

cdl.fit(X_split)

Out:

./home/sed-sac/hgozukan/dev/alphacsc/alphacsc/utils/optim.py:124: DeprecationWarning: Please use `line_search_armijo` from the `scipy.optimize` namespace, the `scipy.optimize.linesearch` namespace is deprecated.
  step_size, _, obj_uv = optimize.linesearch.line_search_armijo(
................................................+
..
[GreedyCDL] Converged after 52 iteration, (dz, du) = 8.622e-05, 8.677e-05
[GreedyCDL] Fit in 1346.4s

<alphacsc.convolutional_dictionary_learning.GreedyCDL object at 0x7f558007a070>

To avoid artifacts due to the splitting, we can optionally reload the data.

X, info = load_data(sfreq=sfreq, dataset='sample', n_splits=1)

Then we call the transform method, which returns the sparse codes associated with X, without changing the dictionary learned during the fit.

z_hat = cdl.transform(X)

Out:

Refitting the activation to avoid amplitude bias...
done

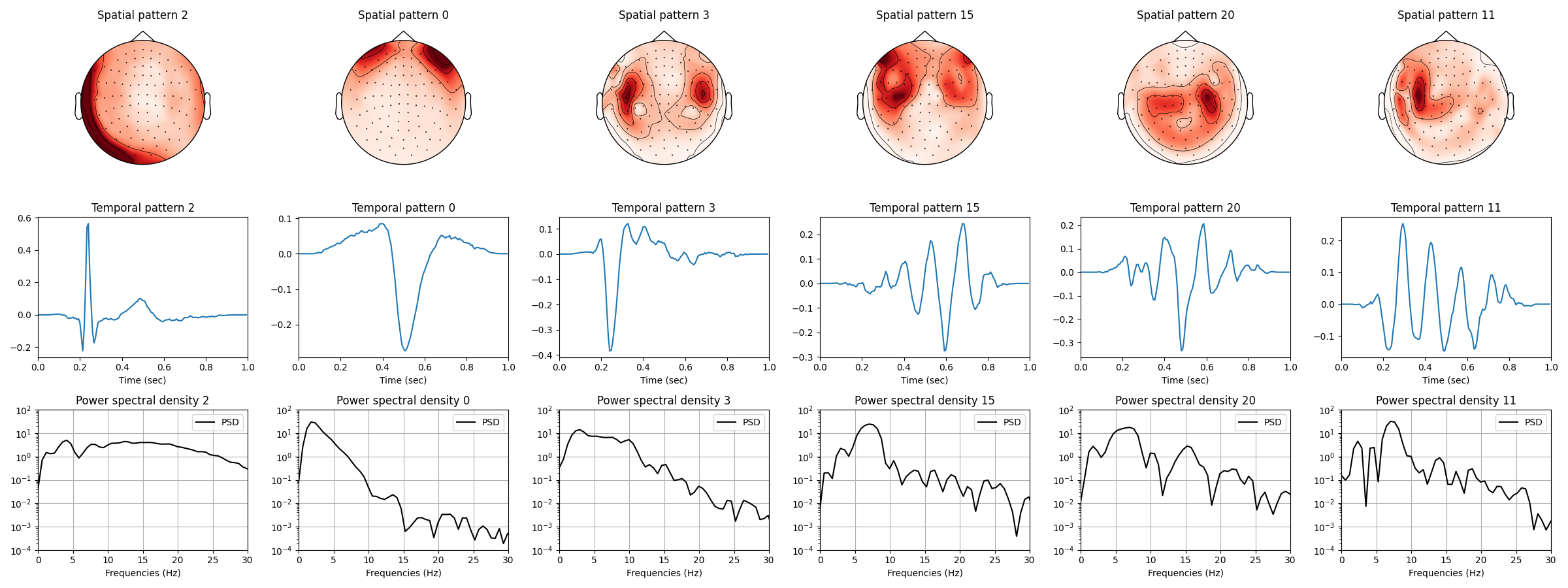

Display a selection of atoms. We recognize a heartbeat artifact, an eyeblink artifact, three atoms of evoked responses, and a non-sinusoidal oscillation.

import mne
import numpy as np
import matplotlib.pyplot as plt

from alphacsc.utils.convolution import construct_X_multi
from alphacsc.viz.epoch import plot_evoked_surrogates

# preselected atoms of interest
plotted_atoms = [2, 0, 3, 15, 20, 11]

n_plots = 3  # number of plots by atom
n_columns = min(6, len(plotted_atoms))
split = int(np.ceil(len(plotted_atoms) / n_columns))
figsize = (4 * n_columns, 3 * n_plots * split)
fig, axes = plt.subplots(n_plots * split, n_columns, figsize=figsize)
for ii, kk in enumerate(plotted_atoms):

    # Select the axes to display the current atom
    print("\rDisplaying {}-th atom".format(kk), end='', flush=True)
    i_row, i_col = ii // n_columns, ii % n_columns
    it_axes = iter(axes[i_row * n_plots:(i_row + 1) * n_plots, i_col])

    # Select the current atom
    u_k = cdl.u_hat_[kk]
    v_k = cdl.v_hat_[kk]

    # Plot the spatial map of the atom using mne topomap
    ax = next(it_axes)
    mne.viz.plot_topomap(u_k, info, axes=ax, show=False)
    ax.set(title="Spatial pattern %d" % (kk, ))

    # Plot the temporal pattern of the atom
    ax = next(it_axes)
    t = np.arange(n_times_atom) / sfreq
    ax.plot(t, v_k)
    ax.set_xlim(0, n_times_atom / sfreq)
    ax.set(xlabel='Time (sec)', title="Temporal pattern %d" % kk)

    # Plot the power spectral density (PSD)
    ax = next(it_axes)
    psd = np.abs(np.fft.rfft(v_k, n=256)) ** 2
    frequencies = np.linspace(0, sfreq / 2.0, len(psd))
    ax.semilogy(frequencies, psd, label='PSD', color='k')
    ax.set(xlabel='Frequencies (Hz)', title="Power spectral density %d" % kk)
    ax.grid(True)
    ax.set_xlim(0, 30)
    ax.set_ylim(1e-4, 1e2)
    ax.legend()

fig.tight_layout()
Spatial pattern 2, Spatial pattern 0, Spatial pattern 3, Spatial pattern 15, Spatial pattern 20, Spatial pattern 11, Temporal pattern 2, Temporal pattern 0, Temporal pattern 3, Temporal pattern 15, Temporal pattern 20, Temporal pattern 11, Power spectral density 2, Power spectral density 0, Power spectral density 3, Power spectral density 15, Power spectral density 20, Power spectral density 11

Out:

Displaying 2-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

Displaying 0-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

Displaying 3-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

Displaying 15-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

Displaying 20-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

Displaying 11-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/channels/layout.py:128: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pos.append(np.array([x, y, dx, dy], dtype=np.float))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/viz/topomap.py:482: DeprecationWarning: Please use `Delaunay` from the `scipy.spatial` namespace, the `scipy.spatial.qhull` namespace is deprecated.
  from scipy.spatial.qhull import Delaunay

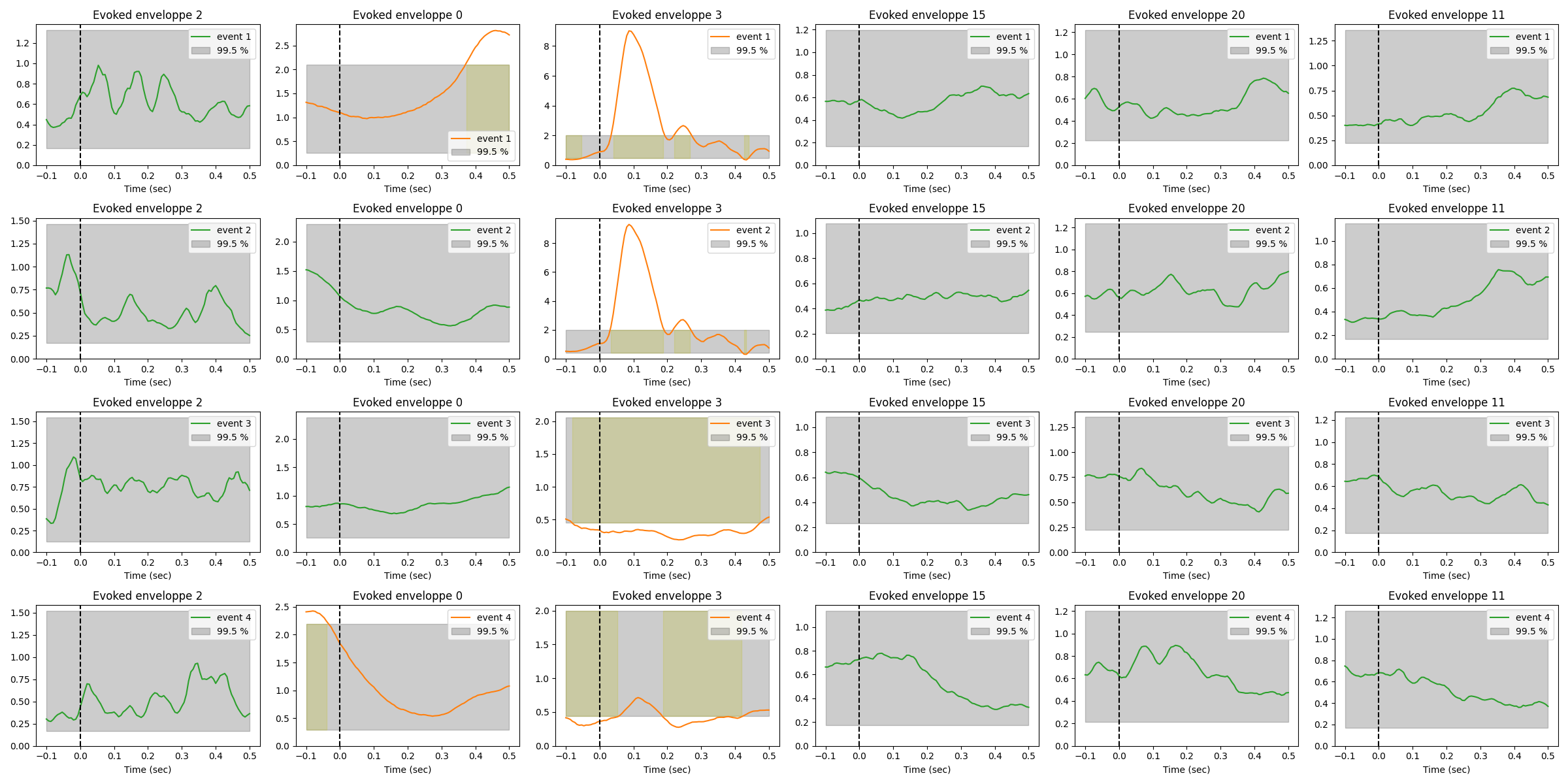

Display the evoked reconstructed enveloppe: For each atom (columns), and for each event (rows), we compute the enveloppe of the reconstructed signal, align it with respect to the event onsets, and take the average. For some atoms, the activations are correlated with the events, leading to a large evoked enveloppe. The gray area corresponds to not statistically significant values.

from copy import deepcopy
from alphacsc.utils.signal import fast_hilbert

# time window around the events
t_lim = (-0.1, 0.5)

n_plots = len(np.atleast_1d(info['event_id']))
n_columns = min(6, len(plotted_atoms))
split = int(np.ceil(len(plotted_atoms) / n_columns))
figsize = (4 * n_columns, 3 * n_plots * split)
fig, axes = plt.subplots(n_plots * split, n_columns, figsize=figsize)

for ii, kk in enumerate(plotted_atoms):

    # Select the axes to display the current atom
    print("\rDisplaying {}-th atom".format(kk), end='', flush=True)
    i_row, i_col = ii // n_columns, ii % n_columns
    it_axes = iter(axes[i_row * n_plots:(i_row + 1) * n_plots, i_col])

    # Select the current atom
    v_k = cdl.v_hat_[kk]
    v_k_1 = np.r_[[1], v_k][None]
    z_k = z_hat[:, kk:kk + 1]
    X_k = construct_X_multi(z_k, v_k_1, n_channels=1)[0, 0]

    # compute the 'enveloppe' of the reconstructed signal X_k
    correlation = np.abs(fast_hilbert(X_k))

    # loop over all events IDs
    for this_event_id in np.atleast_1d(info['event_id']):
        # select the event by its ID, and create a new info dictionary
        this_info = deepcopy(info)
        this_info['events'] = this_info['events'][this_info['events'][:, 2] ==
                                                  this_event_id]
        this_info['event_id'] = this_event_id

        # plotting function
        ax = next(it_axes)
        plot_evoked_surrogates(correlation, info=this_info, t_lim=t_lim, ax=ax,
                               n_jobs=n_jobs, label='event %d' % this_event_id)
        ax.set(xlabel='Time (sec)', title="Evoked enveloppe %d" % kk)

fig.tight_layout()
Evoked enveloppe 2, Evoked enveloppe 0, Evoked enveloppe 3, Evoked enveloppe 15, Evoked enveloppe 20, Evoked enveloppe 11, Evoked enveloppe 2, Evoked enveloppe 0, Evoked enveloppe 3, Evoked enveloppe 15, Evoked enveloppe 20, Evoked enveloppe 11, Evoked enveloppe 2, Evoked enveloppe 0, Evoked enveloppe 3, Evoked enveloppe 15, Evoked enveloppe 20, Evoked enveloppe 11, Evoked enveloppe 2, Evoked enveloppe 0, Evoked enveloppe 3, Evoked enveloppe 15, Evoked enveloppe 20, Evoked enveloppe 11

Out:

Displaying 2-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Displaying 0-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Displaying 3-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Displaying 15-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Displaying 20-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Displaying 11-th atom/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/meas_info.py:1775: DeprecationWarning: `np.str` is a deprecated alias for the builtin `str`. To silence this warning, use `str` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.str_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  ch_types = np.atleast_1d(np.array(ch_types, np.str))
/scratch/hgozukan/miniconda3/lib/python3.8/site-packages/mne/io/pick.py:360: DeprecationWarning: `np.bool` is a deprecated alias for the builtin `bool`. To silence this warning, use `bool` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.bool_` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations
  pick = np.zeros(nchan, dtype=np.bool)

Total running time of the script: ( 24 minutes 53.371 seconds)

Gallery generated by Sphinx-Gallery
